Single core PVC double insulated 6181Y electrical BVV wire and NYM cable

Name: Single core PVC double insulated 6181Y electrical BVV wire and NYM cable
Brand: JHY CABLE
Price: 1 USD

Single core PVC double insulated 6181Y electrical BVV wire and NYM cable Manufactures

Brand Name : JHY CABLE

Model Number : BVV cable

Certification : CCC/ CE/ CB/ ISO

Place of Origin : SHENZHEN CHINA

MOQ : 1000m

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 kilometer/ day

Delivery Time : 3~5 working days

Packaging Details : 100 meters per roll or according to the customer's request.

Conductor : bare copper

Conductor Type : Solid or Strand

Type : insulated, low voltage

Insulation : PVC Insulation Cable

Color : Red, Green, Yellow, Blue, Black or others

Rated Voltage : 300/500V

Operating Temperature : -15℃-70℃

Application : Overhead, Housing Used

Contact Now

Single core PVC double insulated 6181Y electrical BVV wire and NYM cable

Production Description:

1. Product specifications

Bare stranded or solid copper conductor
Flame retardant colour-coded PVC insulation
Flame retardant PVC jacket

Nominal Crosssection (mm²)	Structure (No/mm)	Reference overall diameter (mm)	Recommend ampacity (A)
0.75	1/0.98	3.8	17
1.0	1/1.13	3.9	20
1.5	1/1.38	4.4	25
1.5	7/0.52	4.6	25
2.5	1/1.78	5.0	34
2.5	7/0.67	5.2	34
4.0	1/2.25	5.7	44
4.0	7/0.85	6.0	44
6.0	1/2.76	6.2	58
6.0	7/1.04	6.5	58
10	7/1.35	7.9	79

2. Product features

Rated voltage: 300 / 500V
Temperature range: -15 ° C to + 90 ° C
Minimum bending radius: 5 x overall diameter
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km

3. Application

For fixed wiring
Use in higher protection required or humid environment
Can be placed into trunk and conduit

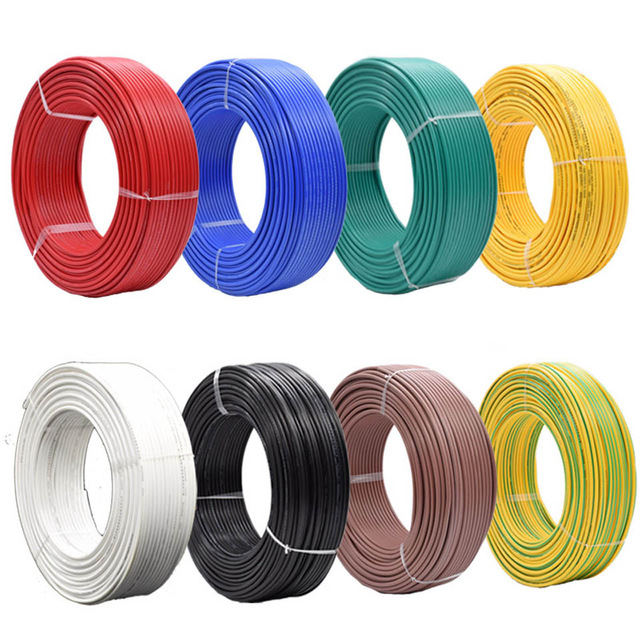

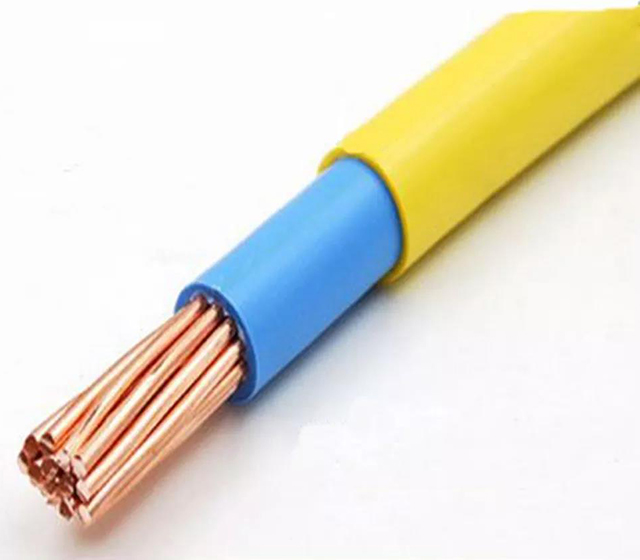

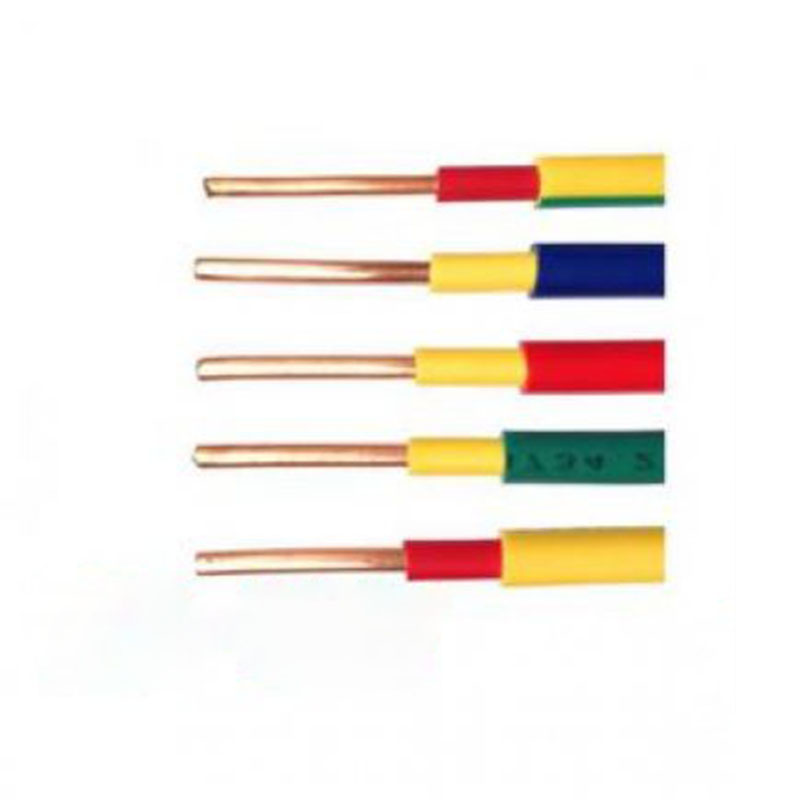

4. Product Image

Single core PVC double insulated 6181Y electrical BVV wire and NYM cable

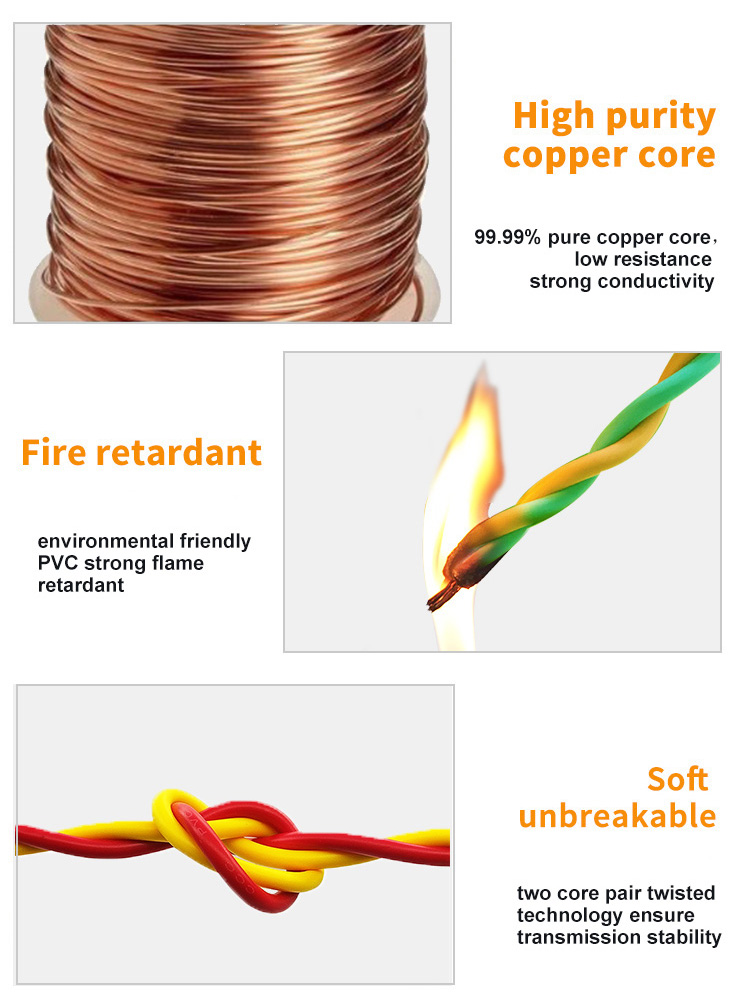

Product Advantage

Single core PVC double insulated 6181Y electrical BVV wire and NYM cable

Product Package

Single core PVC double insulated 6181Y electrical BVV wire and NYM cable

5. Product standard

GB/T 5023, IEC 60227,TIS 11 part 3-2553

6. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
